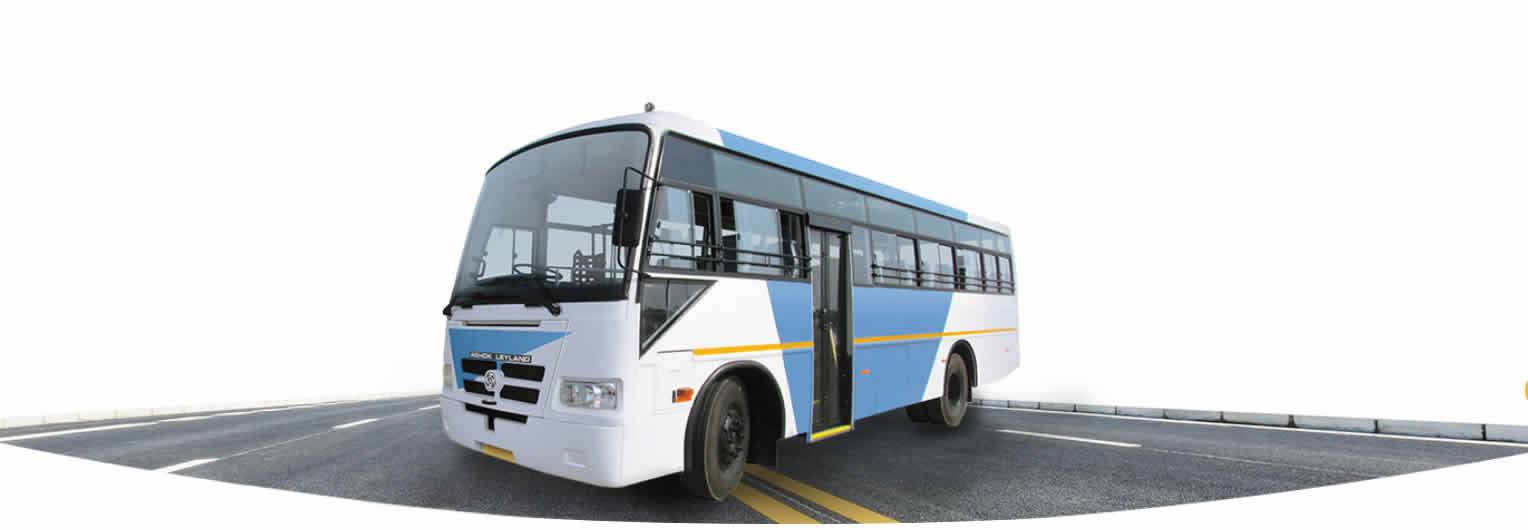

CHEETAH DIESEL
Overview
Modern, robust and reliable
The robust Cheetah is compliant with the latest emission norms. The bus features an aesthetically improved instrument cluster with an electronic speedometer and engine RPM meter. The six-speed synchromesh overdrive gearbox enables better fuel economy. The bus has wider brakes for better brake response, reliability, and enhanced service life.
Better drivability and comfort
Featuring a large grille, a smaller front overhang, integral power steering and high torque, the Cheetah has the agility to tackle hilly terrains. The leaf-spring suspension and shock absorbers ensure great passenger comfort during journeys over long distances or on bumpy roads.
Benefits to the Stake holders
- Lesser travel time
- Option for carrying luggage
- Provides the lowest fare compared to rail / air
- Improves safety as the bus adheres to bus body code norms
Technical Specifications
| Engine model | H Series 6 cylinder CRS diesel engine |
| Emission Norms | BS IV with i-EGR |
| Maximum Power | 118 kW (158 HP) @ 2400 rpm |
| Maximum Torque | 550 Nm @ 1200 - 1900 rpm |
| Clutch | 14” Axial clutch with Mechanical Actuation |
| Transmission | 6 Speed Synchromesh overdrive gearbox |
| Front Suspension | Semi Elliptical Multi leaf Spring |
| Rear Suspension | Semi Elliptical Multi leaf Spring |
| Steering | Integral power steering |
| Brakes | Full air dual line with ABS |
| Auxiliary brake | Exhaust Brake (optional) |
| Parking brakes | Flick Valve operated hand brake on rear wheel only |
| AC option | No |
| Electricals | 24V, 150Ah Battery, 55A Alternator |
| Tyres | 10R20 tube radials (or) 295/80 R 22.5 tubeless radials |
| Fuel tank | 165 Litres / 239 Litres |
| Overall Length, mm | 8742 9839 10124 |
| Wheelbase, mm | 4470 5156 5334 |
| Front overhang, mm | 1590 1590 1590 |
| Rear overhang, mm | 2682 3094 3200 |
| GVW, Kg | 16200 16200 16200 |
| Floor Height, mm | 1150 1150 1150 |
| Seating capacity | 38+D, 3x2, High Back rest 43+D, 3x2, High Back rest 48+D, 3x2, High Back rest |
